ANF HSB High Current Fuse Time Lag M6 Bolt Fuse Strip 30A 40A 50A 60A 80A 100A 110A 120A 150A 175A

Name: ANF HSB High Current Fuse Time Lag M6 Bolt Fuse Strip 30A 40A 50A 60A 80A 100A 110A 120A 150A 175A
Brand: Zeeman
Price: 1 USD

China ANF HSB High Current Fuse Time Lag M6 Bolt Fuse Strip 30A 40A 50A 60A 80A 100A 110A 120A 150A 175A wholesale

Brand Name : Zeeman

Model Number : ANF

Certification : RoHS

Place of Origin : China

MOQ : 1000

Price : USD $0.15~$0.25 per piece

Payment Terms : T/T

Supply Ability : 50K pieces per day

Delivery Time : 10 work days

Packaging Details : 500pcs per box

Item Name : ANF HSB High Current Fuse Time Lag Bolt-on Fuse Strip

Part No. : ANF

Mounting Type : Bolt on

Material : zinc alloy

Voltage Rating : 32V dc

Current Ratin0.1A~20Ag : 30A 40A 50A 60A 80A 100A 110A 120A 150A 175A

Interrupt Rating : 1000A

RoHS Compliant : Yes

Halogen free : Yes

Operating temp : -40˚C to +125˚C

Standard : DIN 72581/2 / QC/T 420

Torque : 4 Nm +/- 1 Nm

Connection : 2 x M6 bolts, distance 30 mm

Contact Now

ANF HSB High Current Fuse Time Lag M6 Bolt Fuse Strip 30A 40A 50A 60A 80A 100A 110A 120A 150A 175A

Product Description

Product Name	ANF Bolt-on Fuse
Connection Type	2 x M6 bolts, distance 30 mm
Volt Rating	32Vdc
Amp Rating	30A 40A 50A 60A 80A 100A 110A 120A 150A 175A
Blow Types	Time-lag
Environmental	Lead and Ph free
Material	Zinc alloy
Package	500pcs per box

Perfect alternative model for HSB Fuses

Non-housed fuse strips for rated voltage up to 32 VDC.

Current rating 30 A -175 A. Ring type lugs.

Voltage Rating: 32 VDC

Interrupt Ratings: 1000A

Operating Temperature Range: -40° to 125°C

Material: Zinc-alloy

Connections: Zinc-alloy

2 x M6 bolts, distance 30 mm

Torque: 4 Nm +/- 1 Nm

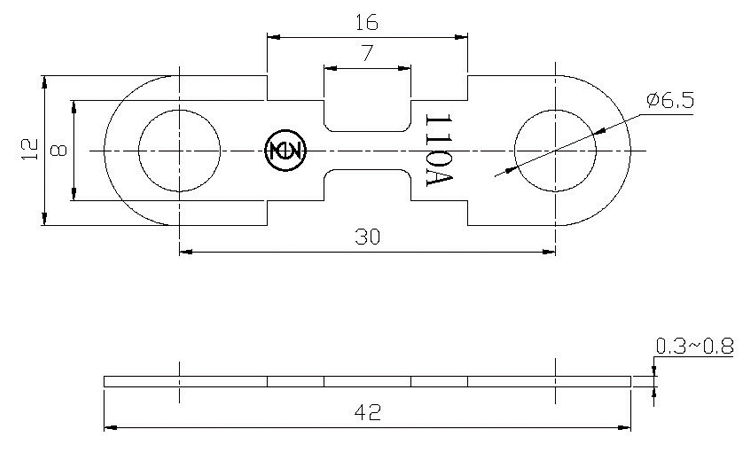

Drawing of ANF fuses

ANF HSB High Current Fuse Time Lag M6 Bolt Fuse Strip 30A 40A 50A 60A 80A 100A 110A 120A 150A 175A

Standard Package

500pcs per box

ANF HSB High Current Fuse Time Lag M6 Bolt Fuse Strip 30A 40A 50A 60A 80A 100A 110A 120A 150A 175A

Shipping Term:

EXW, DDU, DDP, C&F, FOB

Shipping Methods:

International Express, By Air, By Sea

Company warehouse

FAQ

Q: Are you trading company or manufacturer ?

A: We are a fuse product factory.

Q: How long is your delivery time?

A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 100% in advance, T/T.
