3.6x10 Glass Tube Fuses Slow Blow Axial Lead Fuse 3.6x10mm Glass Fuse 250V 0.1A~10A
Description
| Item | Glass Fuse |
| Standard | UL or VDE |
| Blow Type | fast acting |
| Body Material | glass |
| Leads Material | tinned copper |
| Voltage Rating | 250V 125V |
| Current Rating | 0.1A 0.125A 0.16A 0.2A 0.25A 0.3A 0.315A 0.35A 0.4A 0.5A 0.63A 0.75A 0.8A 1A 1.25A 1.5A 1.6A 2A 2.5A 3A 3.15A 3.5A 4A 5A 6A 6.3A 7A 8A 10A |
| Mounting Type | axial leaded |
| Breaking Capacity | 35A |
| Size | 3.6x10mm 0.14" x 0.39"(D*L) |
| Applications | home appliance, power supply, telecommunication, consuming electronics |
Blowing Characteristics
Fast blow
| Time vs Current Characteristics: IEC 60127 |
| Rated current | 210% | 275% | 400% | 1000% |
| Blowing Time | <30min | 10ms~3s | 3ms~300ms | <20ms |
| Time vs Current Characteristics:UL248-1/14 |
| Rated current | 100% | 135% | 200% | 1000% |
| Blowing Time | >4hs | <1h | <5s | >10ms |
Time delay
| Time vs Current Characteristics: IEC 60127 |
| Rated current | 210% | 275% | 400% | 1000% |
| Blowing Time | <2min | 400ms~10s | 150ms~3s | 20ms~150ms |
| Time vs Current Characteristics:UL248-1/14 | |
| Rated current | 100% | 135% | 200% | 1000% |
| Blowing Time | >4hs | <1h | <120s | >10ms |
Dimension

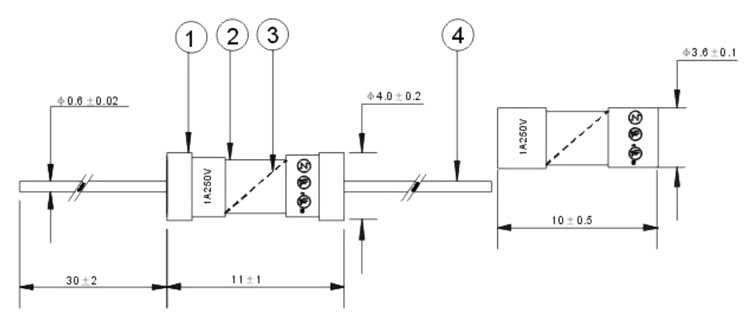

Fast blow

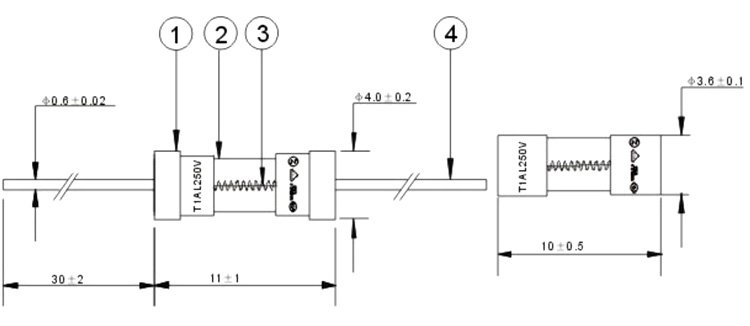

Slow blow

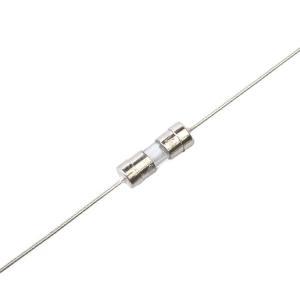

Detailed picture
Standard Package:
500pcs per bag, 20000pcs per carton
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
Note: Please shut down power before your replacement.
Check your original size of fuse before buying: body diameter, body length, rated current, rated voltage.
About Us
Founded in 1999, we are focused on manufacturing fuses for over-current, over-temperature and other circuit protection components. Our fuse products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminal, household appliances, lighting appliances, power supplies and adapters.
Selection of the Fuse and Holder Solution
The first step is to answer the following questions:
- Will the fuse need to accessible for replacement?
- How often will the fuse need to be replaced?
- Should the end customer of the appliance have access to change the fuse?
- Should the fuse only be accessible from outside the appliance?
- How much is available to spend on safety and reliability?
5.1.2. Requirements and characteristics
The most important standards for fuse-holders, which specify requirements, characteristics and testing methods are:
- IEC-publication 257 (1968) and Amendment no. 2 to this publication dated January 1989.
- UL-standard no. 512.
Test Equipment
Q: Are you trading company or manufacturer ?
A: We are a fuse product factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
